Rendering parity

This page shows how closely the browser editor matches the HTML a server sends for the same document, in every browser, and where the remaining differences come from.

canvist renders a document three ways: the canvas editor, the server-rendered HTML it hydrates from (canvist_layout::to_html and the CSS it emits), and SVG. The pixel parity tests in packages/canvist-web render every fixture all three ways, side by side, in Chromium, Firefox, and WebKit on macOS and Linux. They hold the canvas to the DOM in two ways:

• Geometry, to the browser’s layout unit. Every block’s box, every text run, and every caret stop (the edges of every grapheme) is compared with the DOM’s. Hydrating from SSR must not move anything.
• Pixels. The canvas and DOM screenshots are compared with pixelmatch (antialiased pixels excluded) and SSIM, against limits per browser and platform in tests/parity/thresholds.ts.

Each CI run uploads a side-by-side report (canvas | DOM | difference heatmap) as the parity-<browser>-<os> artifact. Run it locally with test:web, or:

cd packages/canvist-web
npx playwright test
node scripts/parity-report.ts   # writes report/parity/index.html

The fixtures

Each runs at device pixel ratios 1 and 2. Some also run at 3, at the fractional ratios browser zoom produces (1.25, 1.5, 1.75), and in the dark theme. Web fonts are subsets of open-licence fonts in tests/fonts/, built by node scripts/fonts.ts.

What it found, and fixed

The first runs found real differences. Each was fixed in the web host or in layout:

• Line boxes. Canvas reports font ascent and descent rounded to whole CSS pixels, but each engine rounds line boxes its own way. Headings sat 0.8 px off in Chromium at 2×. The measurer now reads line boxes from the DOM. Unitless and pixel line-height round differently in Blink, so it probes with the same unitless form the HTML uses.
• Kerning. A kerning pair’s adjustment belongs to its first glyph, but measuring prefixes put it on the second, which moved caret stops by up to 1.6 px. Japanese breaks between every character, so kana pairs lost their kerning entirely. Edges are now placed as the shaper places them, and adjacent segments kern.
• Full-width punctuation. Chromium’s canvas trims the space between adjacent full-width punctuation (「。」), so the CSS contract now sets text-spacing-trim: normal instead of space-all.
• Arabic caret stops. Prefixes of Arabic words measured alone end in final forms, which put caret stops up to 12 px off. They now come from DOM ranges in context.
• Line breaking in WebKit. WebKit follows ICU’s defaults (it breaks after / in URLs), not Blink’s tailoring. Only Chromium gets the tailored rules now.
• Fonts that resolve differently. WebKit’s DOM skips ui-monospace after a missing family, but its canvas honours it, so code drew in a different face. Fonts are now resolved against the DOM, and the StarterKit’s code stack names fonts instead of ui-monospace.
• Firefox font sizes. Firefox’s canvas snaps fractional font sizes (22.4 px headings) to steps its DOM does not use. Those fonts are now measured by the DOM.
• Ligatures. Linux system fonts draw fi, fl, and ffi as one glyph, and browsers split its width evenly between the letters for caret stops. The measurer now probes each face for ligatures and places carets inside them the same way.
• Kerning across spaces. Times-compatible fonts such as Liberation Serif, Chromium’s serif on Linux, kern a space against the capital after it. Layout measures word by word, so a line drifted 1.75 px by its end. A trailing space now kerns with the next word, measured beside its neighbour: browsers measure a space on its own wider than it lays out (Firefox by 19/60 px).
• Device pixels. Baselines snap to the grid the browser snaps DOM text to. Borders snap down to device pixels, which put a blockquote’s text 0.6 px off at 1.25×. On a high-density screen the backing store follows devicePixelContentBoxSize, unless an emulator reports CSS pixels there.

Results

Largest difference across all fixtures and ratios, on macOS (Apple silicon):

Excluding the documented exceptions below.

And on Linux (CI’s Ubuntu runners):

¹ WebKit reports text ranges as whole-pixel rectangles, so the tests can only locate a DOM caret stop to within a pixel. ² Firefox’s character rectangles for some glyphs end 19/60 px past where the next character starts. ³ Glyph positions match, but Firefox draws optical sizes in canvas at quantized steps, so edges shade slightly differently. ⁴ At 1.25× and 1.5× only; see below. ⁵ Subpixel antialiasing; see below.

Irreducible differences

These remain, are covered by explicit limits in tests/parity/thresholds.ts, and are shown in every report:

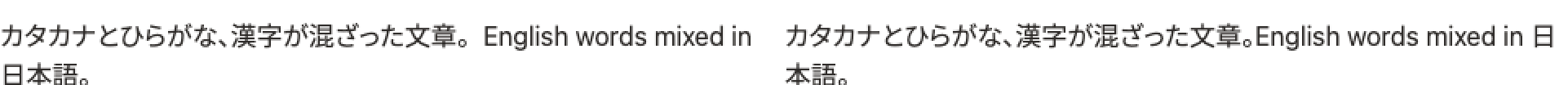

Firefox: full-width punctuation before Latin text. Firefox applies contextual half-width spacing (OpenType chws) to full-width punctuation, depending on its neighbours on both sides. Layout measures Japanese one character at a time, so it can’t see that context. A line holding 「。」 before Latin text can then wrap one character differently. Left is the canvas, right is the DOM:

WebKit: Latin inside CJK paragraphs. Latin text that falls back from a CJK web font measures up to 1.2 px apart in WebKit’s canvas and DOM. Lines still wrap identically.

WebKit: caret stops inside Arabic words come from DOM ranges, which WebKit rounds to whole pixels. They can sit up to 2 px from the DOM’s. Glyphs are unaffected.

Antialiasing. On macOS every engine renders canvas and DOM text with the same grayscale antialiasing: macOS has had no subpixel text since 10.14, and the canvas is opaque, so Chromium may use the same mode as the page. Remaining edge shading differences (the “edge shading” column in the report) come from glyphs a fraction of a pixel apart.

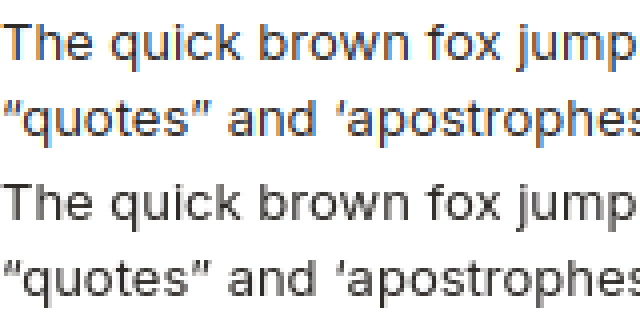

Firefox on Linux: subpixel antialiasing on the canvas. Firefox draws text on an opaque canvas with subpixel (LCD) antialiasing, while headless Firefox draws DOM text in grayscale. Every glyph edge differs in colour, up to 6.64% of pixels at 10 px, but glyphs sit where the DOM puts them. Above 40 px Firefox drops subpixel antialiasing on the canvas too, and those cases match. No web API sets canvas text antialiasing in Firefox. Top is the canvas, bottom the DOM, enlarged four times:

Fractional zoom on Linux. At 1.25× and 1.5× in Chromium and WebKit on Linux, glyph edges shade slightly differently in canvas and DOM: up to 0.98% of pixels and SSIM 0.973, with every glyph within 0.04 px of the DOM’s. Whole ratios match.
